Quick Details

  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Gold
  • Model Number: GDNY-1
  • Power: Electronic
  • Usage: slurry sand content tester
  • Function: slurry sand content/water loss tester
  • Original: China
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details wooden case
Delivery Time 10 days

Product Description

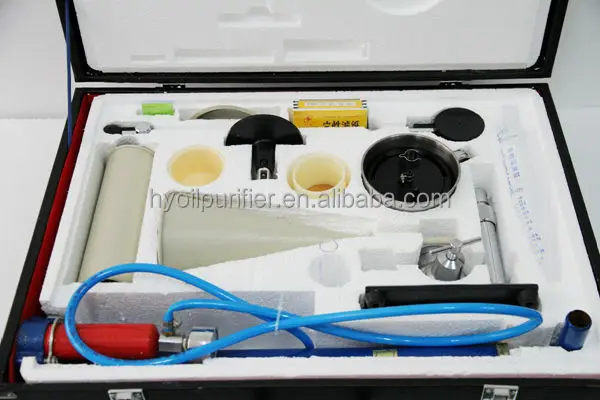

GDNY-1 Slurry Tester



GDNY-1 Slurry Test Set includes 4 test kits as below:



1. GDNA-1 Sand Content Tester

I.Summary

This instrument is suitable to test the sand content of slurry at well site or in the laboratory. It gets the result by the volume change after slurry going through the sieve. Represented with percentage.

II. Technical specifications and parameters

1. Specification of sieve:  200 meshes

2. Scale of sand content: 0~15%: 0.5% per  small division,  15%~30%: 1%  per small division.




2. GDNS-1 Water Loss Tester

I. Summary
The instrument is used to determine the water loss of drilling slurry when it goes through a certain size of filtration area within a certain time (30 minute) under stipulated working pressure (0.69 MPa). The instrument has two types, with an inflator, or with a decompression device. The instrument with an inflator can provide air source using the inflator equipped, so it is simple to be operated and convenient to be carried. It is the best choice of the similar instruments.
II. Main technical specifications and parameters
1. Working pressure: 0.69 MPa
2. Effective filtration area: (45.8±0.5)cm2



3. GDNB-1 Slurry Gravimeter

I. Summary
The instrument is designed and made as per the Industry Standard of Petrochemical of People’s Republic of China SY/T 5381 “Technical Specification for Drilling Fluid Gravimeter”. It is suitable to determine gravity of slurry in the drilling field or in the laboratory. The unit is g/cm3.
The instrument is widely used for slurry gravity determination in the geology exploration drilling field or engineering pile construction area. It can also be used for fluid gravity determination in the other fields.

II. Main technical specifications and parameters
  1. Measurement range: 0.96~3.00 g/cm3
  2. Test accuracy: 0.01 g/cm3
  3. Cubage of slurry cylinder: 140 cm3
  4. Size: 500 mm×100 mm×100 mm




4. GD-1006 Slurry Viscometer

I. Summary
The instrument is used for measuring the viscosity of slurry. The viscosity of slurry is determined by measuring the elapsed time for flowing out 500 ml slurry from the1006 Viscometer. Its unit is second.

II. Main technical specifications and parameters
  1. The effuse tube of the instrument is a brass tube, which is 5 mm in diameter and 100 mm in length.
  2. The elapsed time for flowing out 500 ml water from the instrument is 15 s.
  3. The cubage at one end of the graduated flask is 500 ml, and it is 200 ml at the other end.
  4. Weight: about 2.5 kg.
