GD-12579 ASTM D892 Lubricating Oils Foaming Tendency Tester, Foam Tester

FOB Reference Price:Get Latest Price
US $1-6 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Gold Foaming Tendency Tester
Model Number:
GD-12579 Foaming Tendency Tester
Power:
Electronic
Usage:
ASTM D892 Lubricating Oils Foaming Tendency Tester
Test scope:
Test the Foaming Characteristics of Lubricating Oils
Apparatus:
Lubrication Oil Foaming Characteristics Tester ASTM D892
Application:
Foaming Characteristics Tester for Lubricating Oils
Device:
Automatic Lubricating Oils ASTM D892 Foaming Tester
Test Standard:
ASTM D892
High temperature bath:
(Room temp.~99.9)℃
Low temperature bath:
(5~99.9)℃
Air flow rate:
(94±5)ml/min,adjustable
Refrigerating mode:
refrigeration compressor
Temperature controlling accuracy:
±0.5℃
Packaging & Delivery
Packaging Details
Standard wooden case for GD-12579 ASTM D892 Lubricating Oils Foaming Tendency Tester, Foam Tester
Port
Chongqing of China
Lead Time :
10 business days once order confirmed

GD-12579 ASTM D892 Lubricating Oils  Foaming Tendency Tester, Foam Tester






Instruction:
  • GD-12579 ASTM D892 Lubricating Oils  Foaming Tendency Tester is designed and made as per standards GB/T12579 Determination of foaming characteristics of lubricating oils and ASTM D 892 Standard Test Method for Foaming Characteristics of Lubricating Oils.
  • GD-12579 ASTM D892 Lubricating Oils  Foaming Tendency Tester is used to determine the foaming tendency and stability of lubricating oils.


Features:
  • GD-12579 ASTM D892 Lubricating Oils  Foaming Tendency Tester adopts all-in-one structure. It includes three parts: low temperature test part and it’s control, high temperature test part and it’s control, a portable cooler for low temperature test part.
  • The temperature controller has parameters modifying function. If there is bias between showing temperature and testing temperature,it ca be corrected by this function.
  • GD-12579 ASTM D892 Lubricating Oils  Foaming Tendency Tester equips an automatic timing alarm.


Specification:

1
Power supply
AC(220±10%)V, 50Hz
2Constant temperature heating power650W
3Auxiliary heating power1000W
4Cooling power500W
5Air flow rate(94±5)ml/min,adjustable
6Temperature control range for high temperature bath(Room temp.~99.9)
7Temperature control range for low temperature bath(5~99.9)
8Temperature control accuracy±0.5
9Timer5min and 10min,accurate to second
10Timing accuracy0.01%+0.05s(20℃)
11Ambient temperature(-10~+40)
12Relative humidity85%
13Maximum power consumption2700W
14DimensionMain unit:800mm×500mm×765mm
Cooler:400mm×450mm×300mm




Accessories of GD-12579 Oil Foam Test Apparatus as per ASTM D892

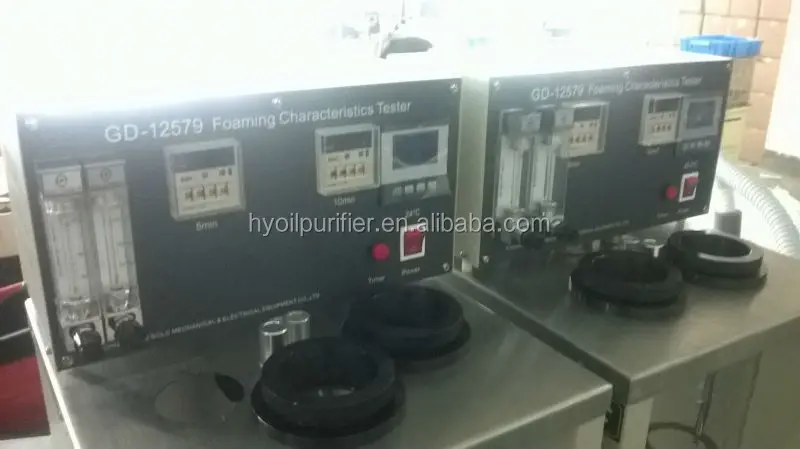

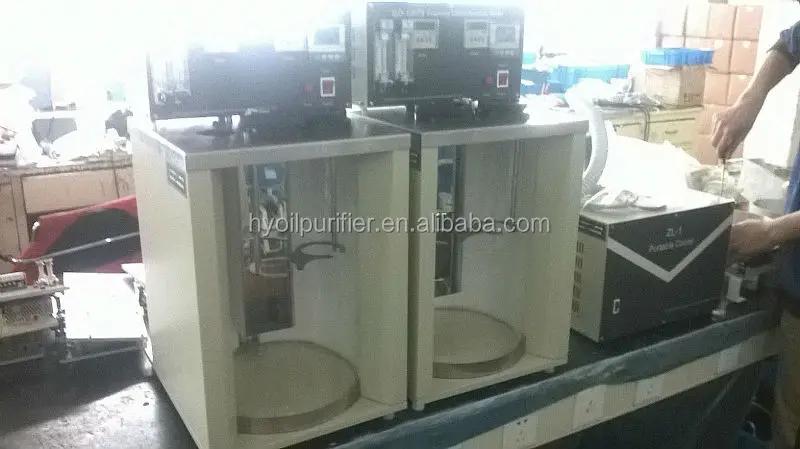

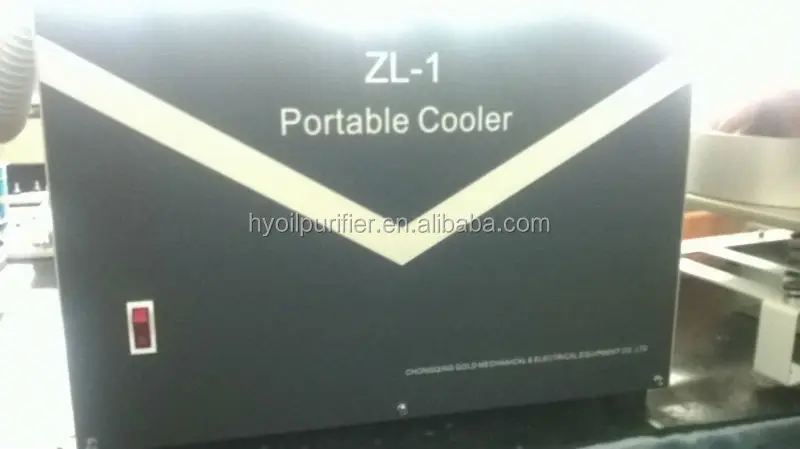

Real Pictures:
