Quick Details

  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Gold
  • Model Number: Oil immersed type HIpot Test Set
  • Power: Electronic
  • Usage: AC/DC hipot Test Sets
  • Application: AC DC Hipot test set
  • warranty: 1 year
  • output voltage: 50 kv/100kv
  • output capacity: 3kVA to 50 KVA
  • High voltage warning mode: light and sound
  • certification: CE
  • Warranty: 1 year
  • test transformer: oil type ,dry type, resin type
  • Apparatus: Hipot Test Set , High Voltage Generator
  • Test projects: cable insulating test or other device high voltage test

Packaging & Delivery

Packaging Details wooden case for Hipot Test Sets , High Voltage Generator
Delivery Time 10 working days after receipt of the advance payment







Hipot Tester for Insulation test projects

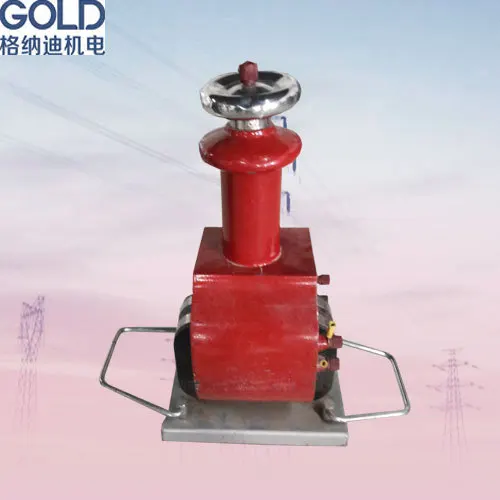

Various of test transformer



Introduction:

  • AC/DC HIPOT tester is applied to test the insulation ability of electric power equipments and

insulation materials at power frequency high voltage.

  • Also the AC /DC HIPOT tester is a universal power source in HV test.
  • According to the insulation materials of the HV transformer, there are three kinds of HV transformer: Dry HV transformer, Oil HV transformer and SF6 gas HV transformer.

For the dry HV transformer the insulation material is epoxy resin.

For oil HV transformer the insulation material is insulation oil.

For SF6 HV transformer the insulation material is SF6 gas.



The dry HV transformer is smaller in size and less in weight than oil HV transformer. But the maximum output voltage is less than 100kv for dry HV transformer.



Specifications:



a. AC220V 50Hz/60Hz for transformers which the capacity less than 10kva

b. AC380V 50Hz/60Hz for transformers which the capacity more than 10kva

  • HV transformer mode: single phase
  •  Maximum output voltage: 50kv/100kv/150kv/200kv/250kv optional
  •  Output capacity: 3kva/5kva/10kva/20kva/30kva/50kva/100kva/150kva/200kva optional
  •  Voltage read mode:  analog or digital, direct HV voltage reading form voltmeter
  •  Current read mode:  analog or digital, direct LV circuit current reading from amp meter
  •  Protection mode: LV circuit over current protection
  •  Voltage adjust mode: manual regulation
  •  Rated frequency: 50Hz/60Hz
  •  Automatic zero position lock unit to avoid wrong operation in HV output
  •  Work temperature: 0~50degree
